Power Conditioning Block Projects

This folder contains two KiCad hardware designs split by function.

Projects

`PowerBlock`

Power supply block containing only:

5V buck converter: LM62460Q1 (LM62460QRPHRQ1)
3.3V linear regulator: TPS7A94 (PTPS7A9401DSCR)
Comparator stage: TLV6710 (TLV6710DDCT)

`PowerConditioningBlock`

Precision conditioning/reference block containing:

Precision voltage reference: ADR4525 (ADR4525ARZ)
Low-noise LDO: TPS7A94 (PTPS7A9401DSCR)
Precision op-amp: OPA2211 (OPA2211AIDDAR)

Images

`PowerBlock`

`PowerConditioningBlock`

Repository Notes

Each project includes KiCad source files (.kicad_sch, .kicad_pcb, .kicad_pro) and generated Gerbers.
KiCad backup archives and local transient files are excluded via .gitignore.

Project Directory

Browse the repo files

README.md

# Power Conditioning Block Projects

This folder contains two KiCad hardware designs split by function.

## Projects

### `PowerBlock`
Power supply block containing only:

- 5V buck converter: `LM62460Q1` (LM62460QRPHRQ1)
- 3.3V linear regulator: `TPS7A94` (PTPS7A9401DSCR)
- Comparator stage: `TLV6710` (TLV6710DDCT)

### `PowerConditioningBlock`
Precision conditioning/reference block containing:

- Precision voltage reference: `ADR4525` (ADR4525ARZ)
- Low-noise LDO: `TPS7A94` (PTPS7A9401DSCR)
- Precision op-amp: `OPA2211` (OPA2211AIDDAR)

## Images

### `PowerBlock`

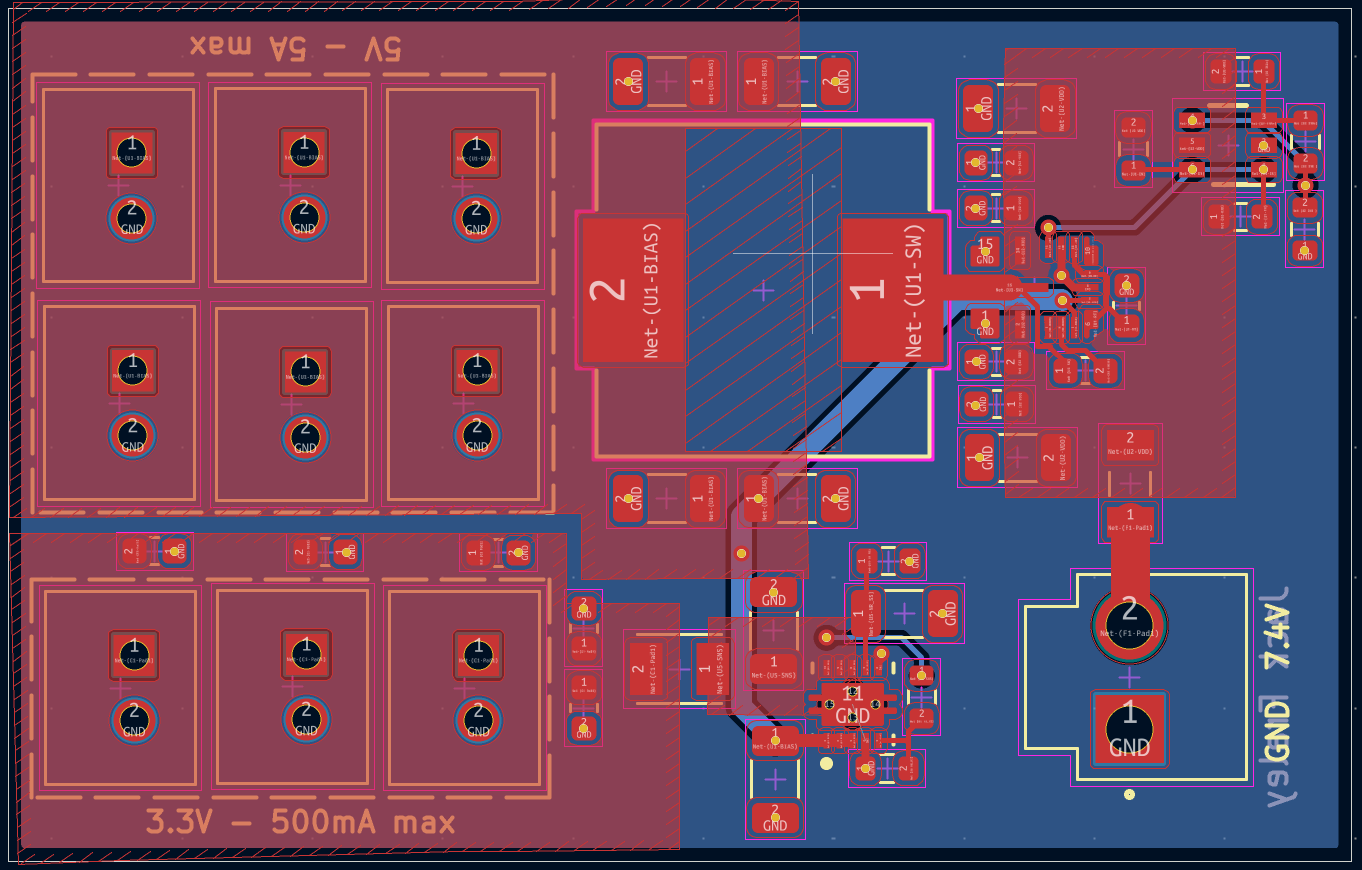

![PowerBlock](Power-Block.png)

### `PowerConditioningBlock`

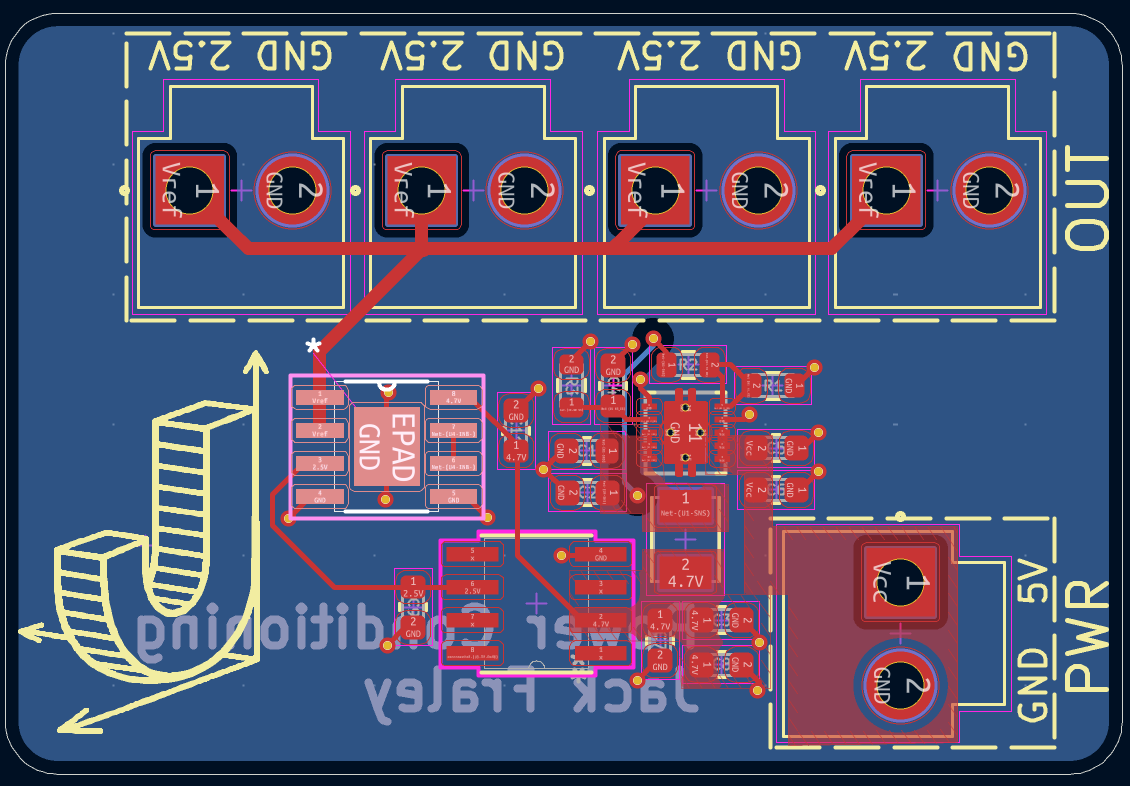

![PowerConditioningBlock](PowerConditioningBlock.png)
